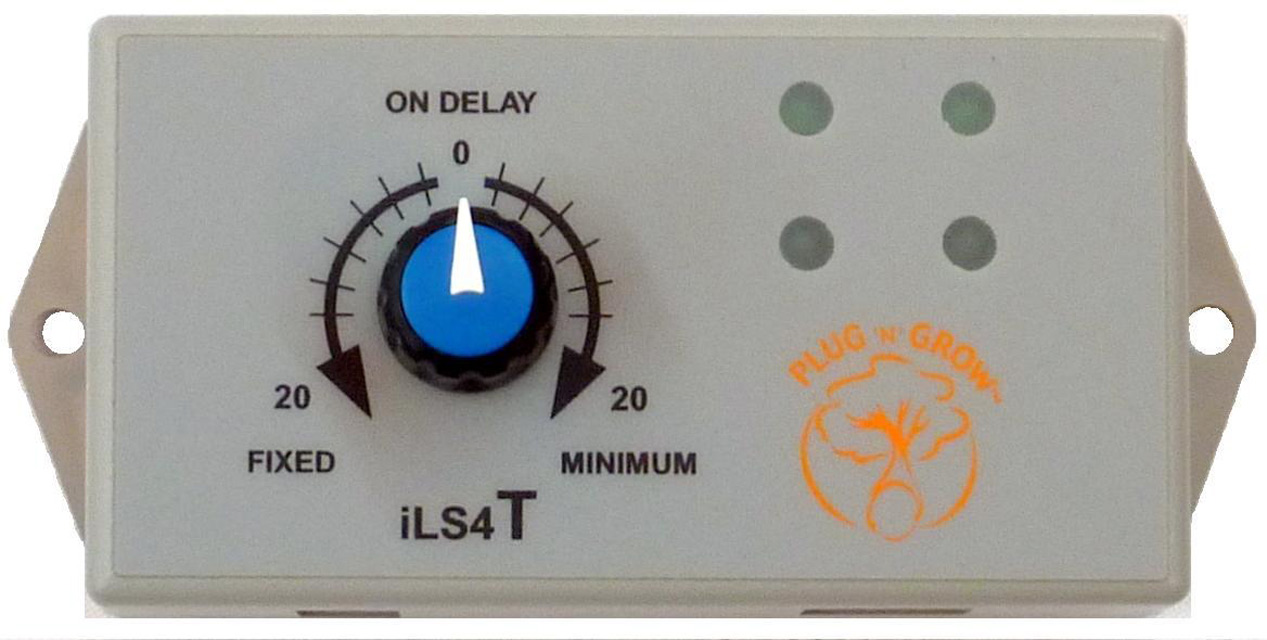

ON Delay Timer for ILS4-121-121S & 241, Start up Delay
The ILS4 triggered switch boxes from Plug ‘N’ Grow may be plugged into this external timer to delay re-powering of the equipment when the power comes back after a brownout or failure. This timer is optional and sold separately. This adjustable timer protects the HID lights which need to cool down before to restart to avoid prematurely burning the bulbs. The timer is also useful to delay the starting of the heating equipment or the air conditioning system. It then decreases the power required when it gets back online. Moreover, the timer can trigger ON the ILS4 switcher box outlets sequentially: 1 at a time with 30 seconds between each outlet power up (ILS4T-1) or 2 outlets at a time with 30 seconds before the second pair of outlets power up (ILS4T-2).
– Easy access to settings button without having to remove the ILS4 switcher box cover
– External timer may be installed up to 50 feet from the ILS4 switcher box
– Fixed or minimum ON-delay setting between 0 and 20 minutes before the first ILS4 outlet or pair of outlets powers up
– 1 outlet or a pair powers up at a time on the ILS4 with a 30 second delay between activation
|Dimensions||5.5 × 4.75 × 2.5 in|
